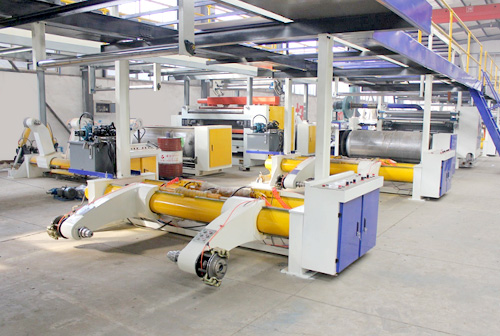

The 3 and 5 Ply Automatic Corrugated Board Plant by Senior Packaging Machinery Mfg. Co. has flute rolls which are the main part of this machine. These are very minutely finished to give the perfect impression on the board. Motorized self loading twin shaft reel stand with three unwinding shafts helps in easy operation saving time. Electric heaters are fitted to provide lamination of board which help to increase the efficiency and production.
| Material | MS |
| Power Source | Electric |
| Production Capacity | 40 mtr/min |
| Brand | Packhub Senior |
| Voltage | 240 V |
| Phase | 3 |
| Power Consumption | 27 - 45KW |
| Size | 45” | 52” | 62” | 72” | 85” |
| MOTOR H. P. | 5 | 7.5 | 10 | 15 | 20 |
| HEATING LOAD APPROX. (KW) | 27 | 39 | 45 | BOILER ONLY | BOILER ONLY |
| GROSS WEIGHT (Kgs.) | 6200 | 6700 | 7500 | 9000 | 11000 |
| SPEED/MIN. (Ft.) | 120 | 120 | 120 | 120 (Roll Dia 13”) only | 120 (Roll Dia 13”) only |
| OUTPUT RF | 110 | 110 | 110 | 110 | 110 |
