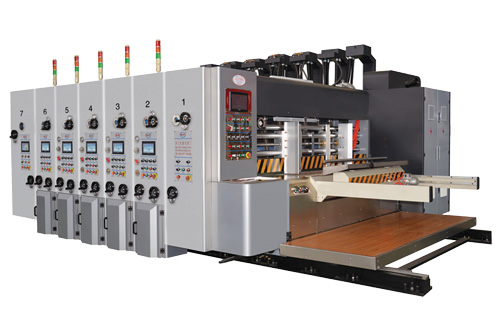

Senior Brand Fully Automatic Printing, Slotting Machine

Fully Automatic Printing, Slotting Machine

Lead edge feeding system, vacuum adsorption transmission, suitable for all kinds of corrugated cardboard. Increase tissue paper board and bend cardboard transmission stability, high speed and precision.
Main motor, fan motor, phase motor controlled by inverter, adjust speed smooth, save electricity, accurate and reliable.
High precision gear transmission, accurate and durable:20CrMnTi high-frequency quenching ,hardness HRC58-62, up to the national level 6 precision, use for a long time, high overprinting accuracy.
Total machine automatic reset zero system, storing common order, change order quickly, operation is convenient.
Main drive bearing Japan NSK, other bearing brands for domestic HRB, ensure the transmission stability.
Mechanical automatic up oil lubrication system, equipped with automatic balancing device, increase the service life of gear.

920	1224	1426	1628
Max Speed (pcs / min)	300	250	180	160
Feeding Precision	±1
Mim Sheet Size	300 × 600	420 × 600	450 × 600	450 × 600
Max Sheet Size	800 × 2100	1150 ×2500	1350 ×2700	1500 ×2900
Skip Sheet Size	1200 ×2100	1500 ×2500	1800 ×2700	2000 ×2900
Max. printing Area (mm)	900 ×2000	1200 × 2400	1400 × 2600	1600 × 2800
Printing Precision (mm)	±0.5
Plate thickness (mm)	7.2
Positive knife (mm) Negative knife (mm)	130 × 130 × 130 × 130	140 × 140 × 140 × 140	150 × 150 × 150 × 150
Positive knife (mm) Negative knife (mm)	230 × 65 × 230 × 65	230 × 70 × 230 × 70	240 × 75 × 240 × 75
Max slot depth (mm)	230	300	360	400
Max slot depth (mm)	Increase the blade, increase the slot depth
Slotting Precision	±1
Max die cutting size (mm)	900 × 1950	1200 × 2400	1400 × 2600	1600 × 2800
Die cutting precision	±1
